| ·脚踏开关外观和尺寸 |
|
脚踏开关种类 |
型式 |
负荷 |
微动开关型式 |
电缆种类长度 |
接点 |
动作压力 |
外壳材质 |

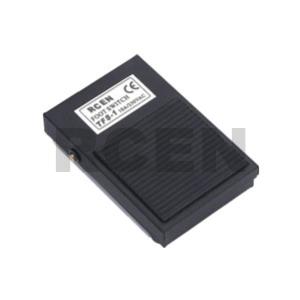

标准型
复归式脚踏开关 |

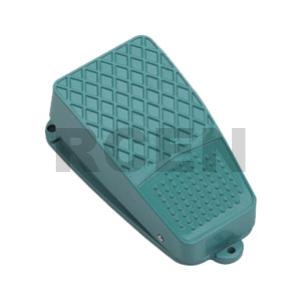

TFS-101 |
10A 250VAC |
进口V型微动 |
0.75m㎡,3C/0.5M-3M |
1A1B |
3.5kg |
塑胶＊铝合金 |
| TFS-102 |
15A 250VAC |
TM
1704 |
0.75m㎡,3C/1M-2M |
1A1B |
" |
" |
| TFS-103 |
10A 250VAC |
进口V型微动 2只 |
0.75m㎡,6C/1M-2M |
2A2B |
" |
" |
| TFS-104 |
15A 250VAC |
TM
1704x2 |
0.75m㎡,6C/1M-2M |
2A2B |
" |
" |
标准型
交替式脚踏开关 |
TFS-105 |
6A 250VAC |
进口交替开关 |
0.75m㎡,2C/1M,1.5M-2M |
Push
on
push off |
" |
" |
| TFS-106 |
6A 250VAC |
日制交替式开关 |
0.75m㎡,3C/1M-3M
|
PUSH
1A
PUSH 1B |
" |
" |

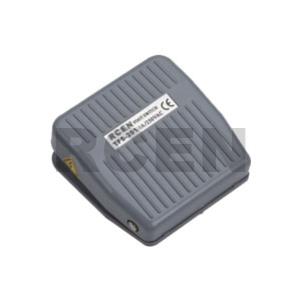

| 小型前踩式 |
TFS-201 |
10A 250VA |
V-10型微动开关 |
0.5m㎡,3C/1M,-3M
| 1A1B
| 1kg |
塑胶 |
| 前踩附固定片式 |

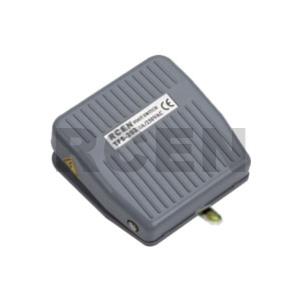

TFS-202 |
10A 250VAC |
" |
" |
| 小型后踩式 |

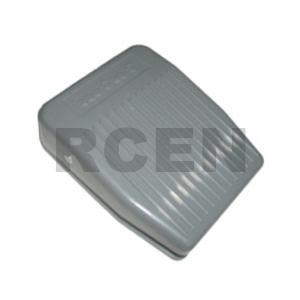

TFS-203 |
10A 250VAC |
" |
" |

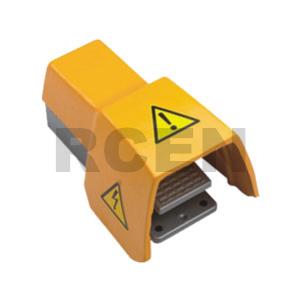

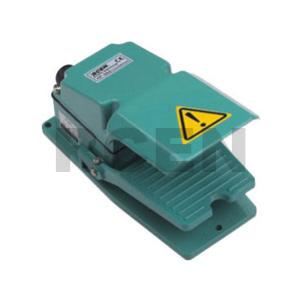

| 护盖型脚踏开关 |
TFS-302 |
15A 250VAC |
TM1704 |
附电缆固定头，不附电缆 |
1A1B |
3.5kg |
铝合金＊塑胶 |
| TFS-304 |
15A 250VAC |
TM
1704X2 |
2A2B |
3.5kg |
铝合金＊塑胶 |
| TFS-305 |
6A 250VAC |
进口交替开关 |
PUSH
ON
PUSH OFF |
" |
" |
| TFS-306 |
6A 250VAC |
日制交替式开关 |
PUSH
2A
PUSH 2B |
" |
" |
| 大型脚踏开关 |
TFS-402 |
15A 250VAC |
TM
1704 |
1A1B |
" |
" |
| TFS-404 |
6A 250VAC |
TM
1704 X2 |
2A2B |
" |
" |
| TFS-405 |
6A 250VAC |
进口交替开关 |
PUSH
ON
PUSH OFF |
" |
" |
| TFS-406 |
6A 250VAC |
日制交替式开关 |
PUSH
2A
PUSH 2B |
" |
" |
| 全罩式脚踏开关 |

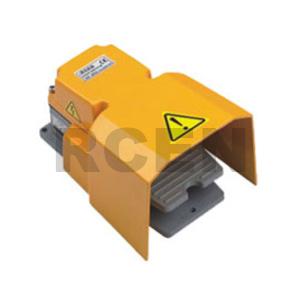

TFS-502 |
15A 250VAC |
TM
1704 |
1A1B |
" |
铝合金 |

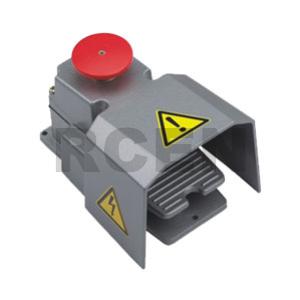

| TFS-502S |
15A 250VAC |
TM
1704 |
1A1B |
" |
铝合金 |
| TFS-602 |
15A 250VAC |
TM
1704 X2 |
2A2B |
" |
铝合金 |
|
*注：脚踏开关TFS3,TFS4系列防水型专用时，尾数加”R”。
脚踏开关TFS1,TFS3,TFS4材质全为铝合金时，尾数加”Z”。 |
|
